The Clean Cycle containerized solution has been meticulously engineered to be reliable and efficient on a variety of different heat sources. All major components have been assembled into a single package to create an automated machine that generates electricity from nothing other than a hot water or steam loop.


An end-to-end heat to power solution

Head on with EGHX white2.png

Key features

Turnkey package

Complete assembly requires only heat input, interconnection, and minor control integration to begin producing electricity.

Simple grid integration

Electricity produced by the generator is conditioned with power electronics to match any grid frequency automatically.

Autonomous

The unit adjusts to the heat provided to it, including startup, adjusting to fluctuating loads, maximizing output, and shut-off when needed.

Low maintenance

Core generating equipment has no gearbox, no oils, no lubricants, no external rotating seals, and does not require manned operation; maintenance is typically performed by existing on-site personnel.




Robust core components enabled by proprietary magnetic bearing technology



Clean Cycle generator

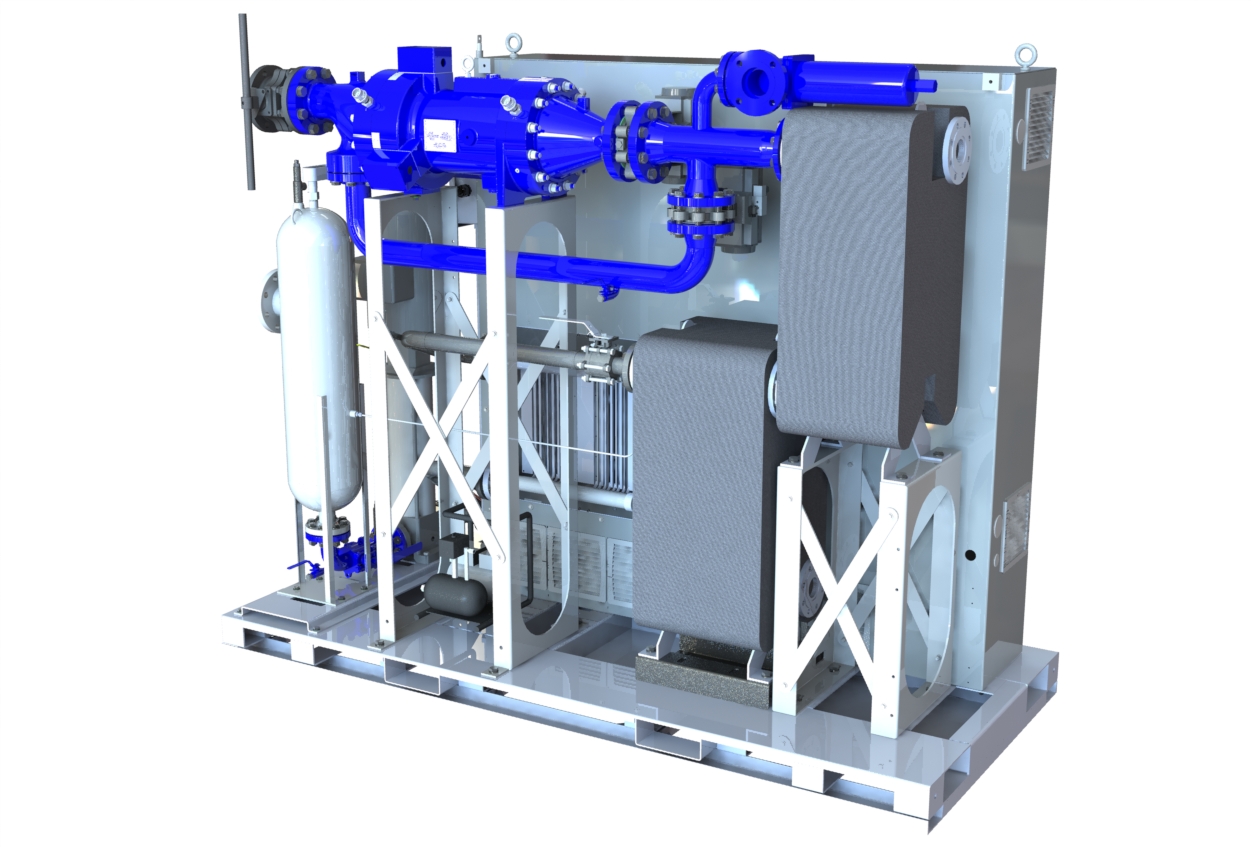

The Clean Cycle is the heart of the containerized solution. The skid, pictured left, includes two brazed plate heat exchangers to transfer the heat from the water or steam to the refrigerant loop. From the heat exchangers, the refrigerant spins the turbine generator enclosed within the Integrated Power Module (IPM). The electricity is conditioned by on-board power electronics before being sent to the grid. The whole process is controlled by a central Controller & PLC.

IPM cutout.jpg

Integrated Power Module

The IPM is the heart of the Clean Cycle solution. It is a fully enclosed, hermetically sealed module that includes an integrated turbine generator that sits on magnetic bearings. The turbine is automaticaly controlled in a magnetic field by a Magnetic Bearing Controller as it spins at 27,500 RPM. The turbine generator is self cooled, and there is no oil, lubricants, or gearbox required.

Containerization

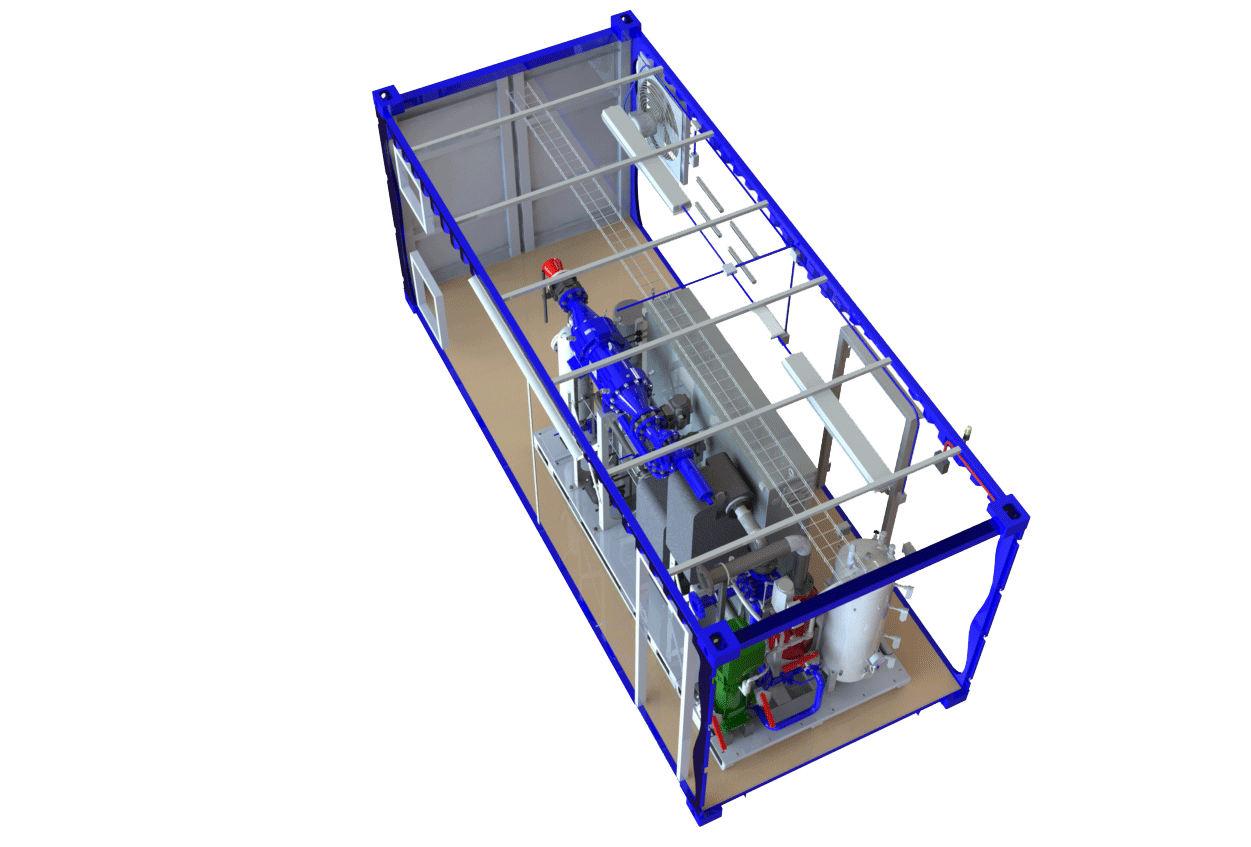

The Clean Cycle arrives mounted in the 20ft ISO shipping container that it arrives in. The team has modified the container to have access doors, cut-outs for all necessary pipework to the heat source and condenser. It also has optional coating and salt screen with pressurization fan to prevent corrosion.

Condenser

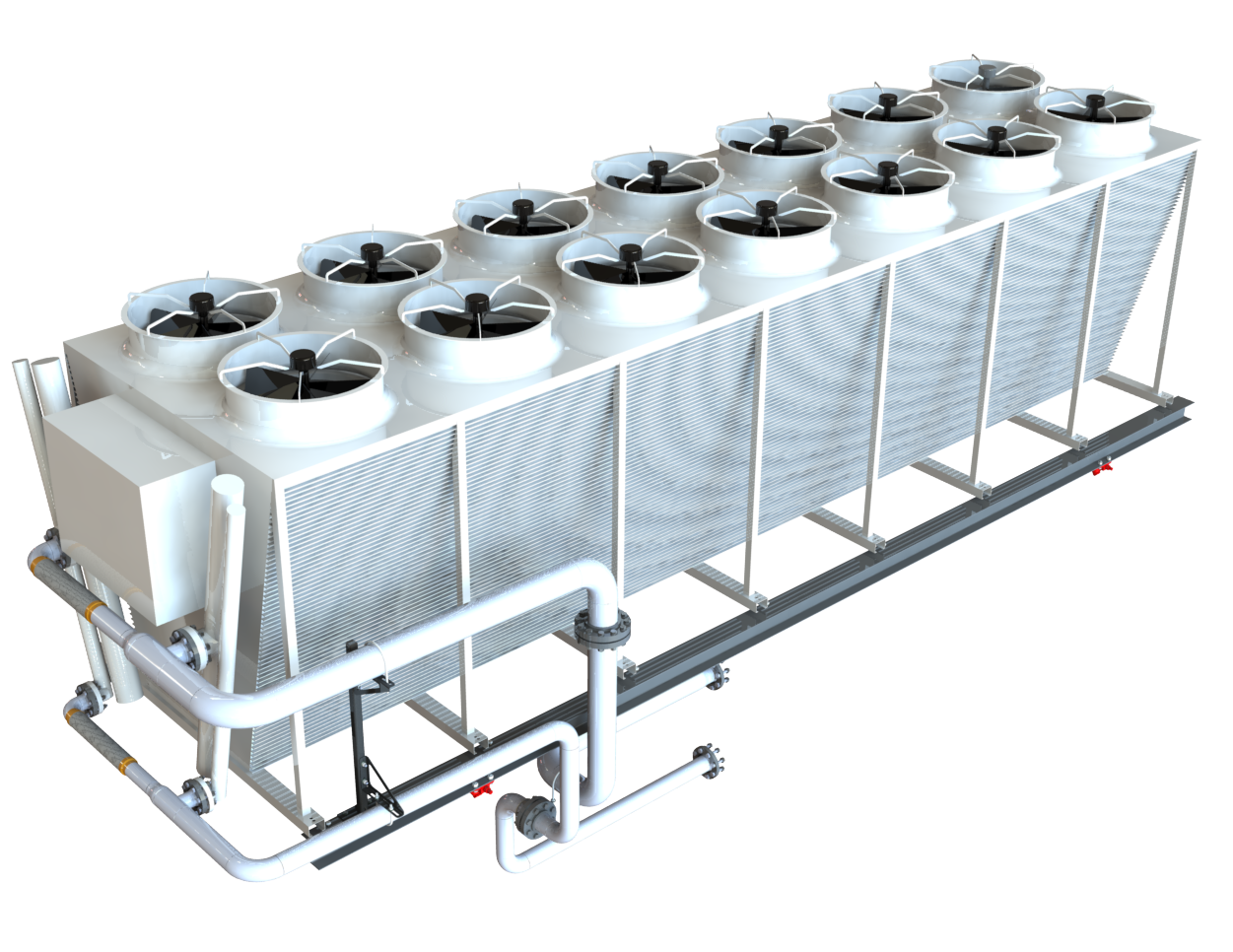

The standard air condenser uses fans to  cool the vapor refrigerant to a liquid after it leaves the IPM. It automatically communicates with the Clean Cycle unit to determine the optimal fan speeds to maximize output and minimize parasitic losses. The condenser ships separately with a mounting kit so it can be  placed on top of the containerized solution. An epoxy coating is optional for installations near salt water to prevent corrosion. If cooling water is available on site, an optional water cooled heat exchanger mounted inside the container can be used in place of the air condenser.

Heat capture

The most common way to extract the heat energy from an exhaust stream is to use an exhaust gas heat exchanger, similar to the one pictured on the left. In this case, hot exhaust flows over a series of pipes that water is piped through. The water absorbs the heat energy from the exhaust, and then the water (or in some cases steam) can be pumped to the Clean Cycle unit using a closed loop.

Clean Cycle specifications

Rating: 140kW gross electrical
Output: 50 or 60hz, 3 phase 400-480V
Power Factor: 1. Built-in power electronics
Emissions: Zero

Refrigerant: r245fa, benign, non -flammable
Turbine: Single stage radial
Generator: Rare earth magnetic bearing
Cycle temperatures: 25-125C, 77-291F
Cycle pressures: up to 25 bar
Heat exchangers: Brazed plate, on skid

Heat delivery: Pressurized water or steam
Cooling: Air cooled radiator standard. Water cooling optional.

Sound: 85 decibels at 1 meter
Controls: Allen Bradley controller
Operation: Unmanned operation
Monitoring: Remotely via ethernet
Shipping: ISO 20 ft container, redeployable



Connections

Heat input: Steam

Heat input: Pressurized Water

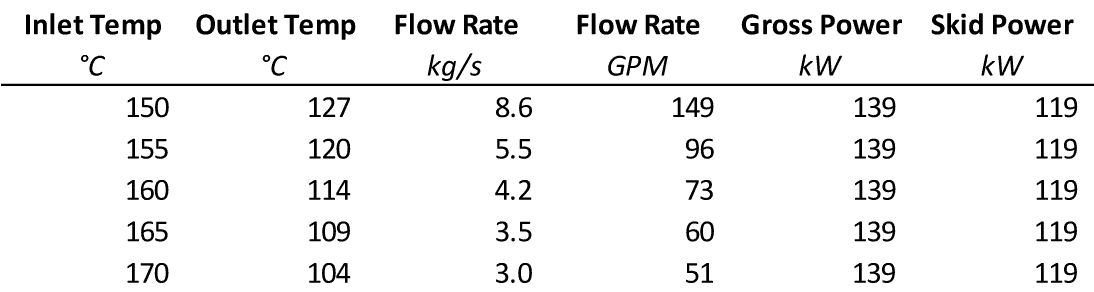

Assumptions

  • Output – 140kW gross electrical
  • Ambient temperature – 25C
  • Water density –  912kg/m3 at 150C
  • Water specific heat – 4.3kj/kg-k



Standardized modules can be configured to work on unique heat sources


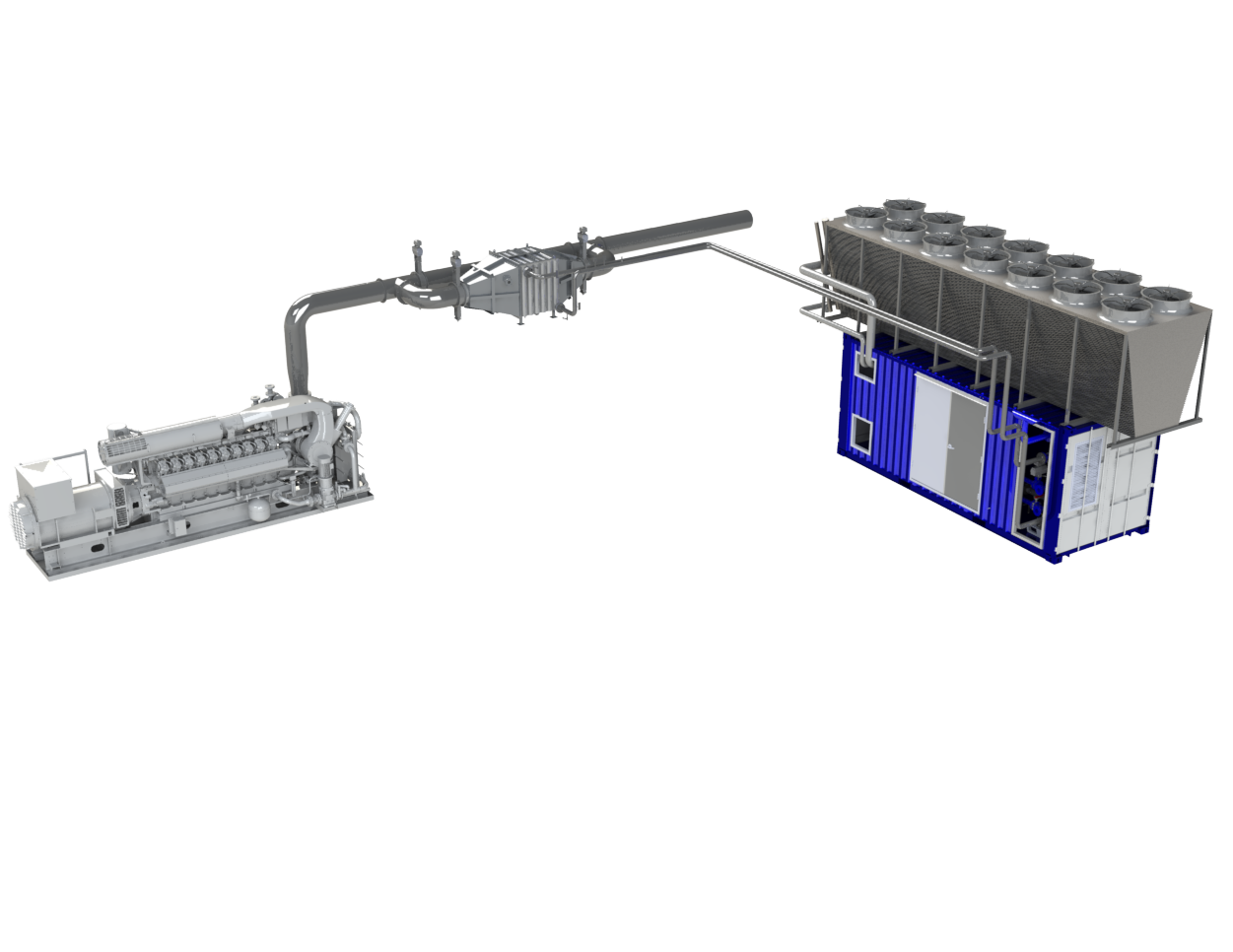

CC attached to engine, no container.png

Single exhaust heat source to one Clean Cycle

Regardless of the source of the exhaust, if it is of sufficient temperature and flow rate, we should be able to capture the heat, deliver it to the Clean Cycle, and generate power. We also have the option of using multiple small exhaust streams if there is insufficient heat from one of them.

Water cooled condensing options

The Clean Cycle is configured so that if a heat source is available in the form of pressurized water or steam, it can be fed directly into the system (shown as orange pipe). There is also an option for water cooled condensing whereby cool water can be pumped directly (shown as light blue pipe) into a condensing heat exchanger mounted on the Clean Cycle unit; this avoids the need for the large air cooled condenser.

4 engines, 10 ORC system ISO VIEW.png

Multiple units on a large heat source

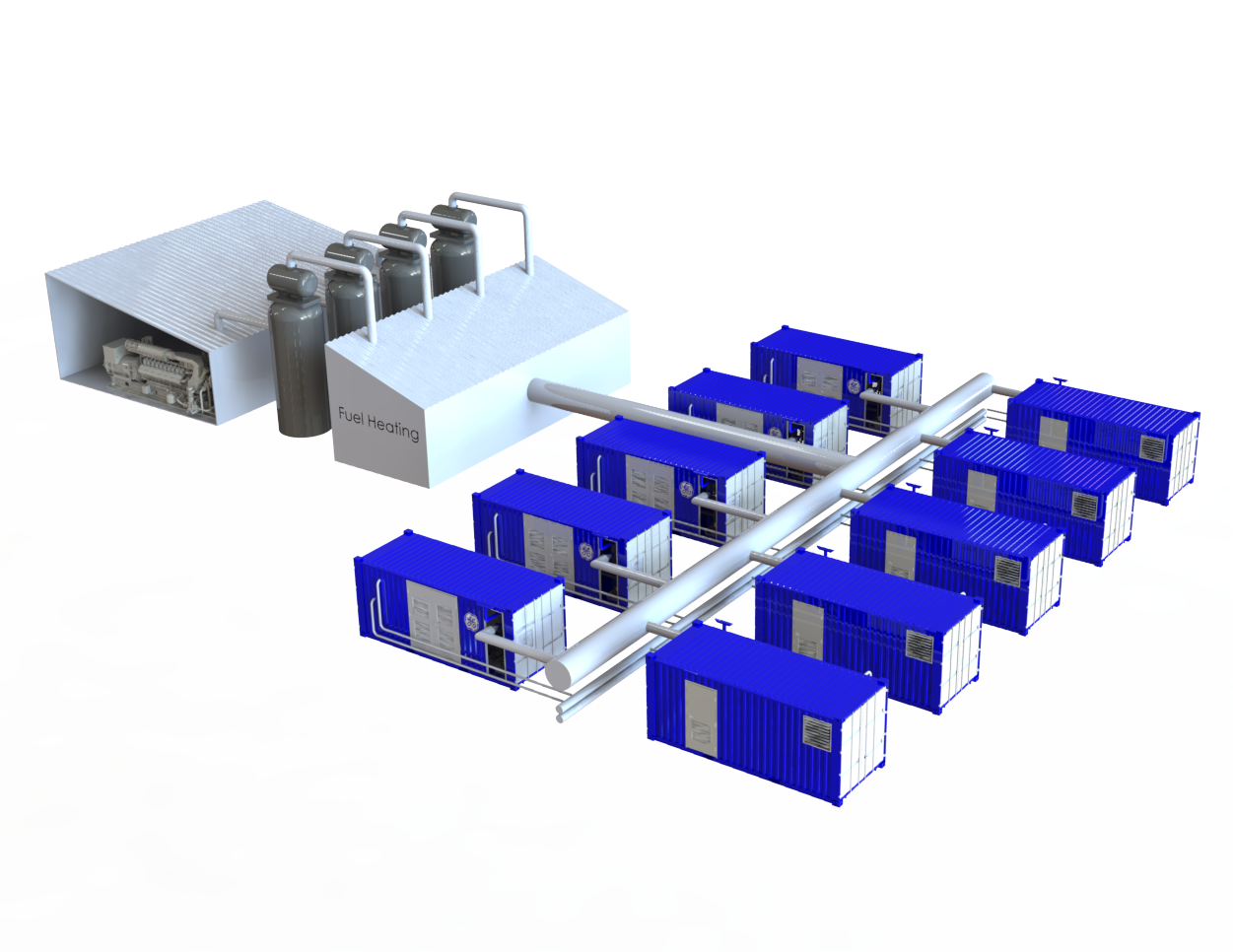

For sites with significant amount of heat available, Clean Cycle units can be placed in parallel on a common water or steam system. The units will work with each other to optimize the output of the overall system for the given heat source.
